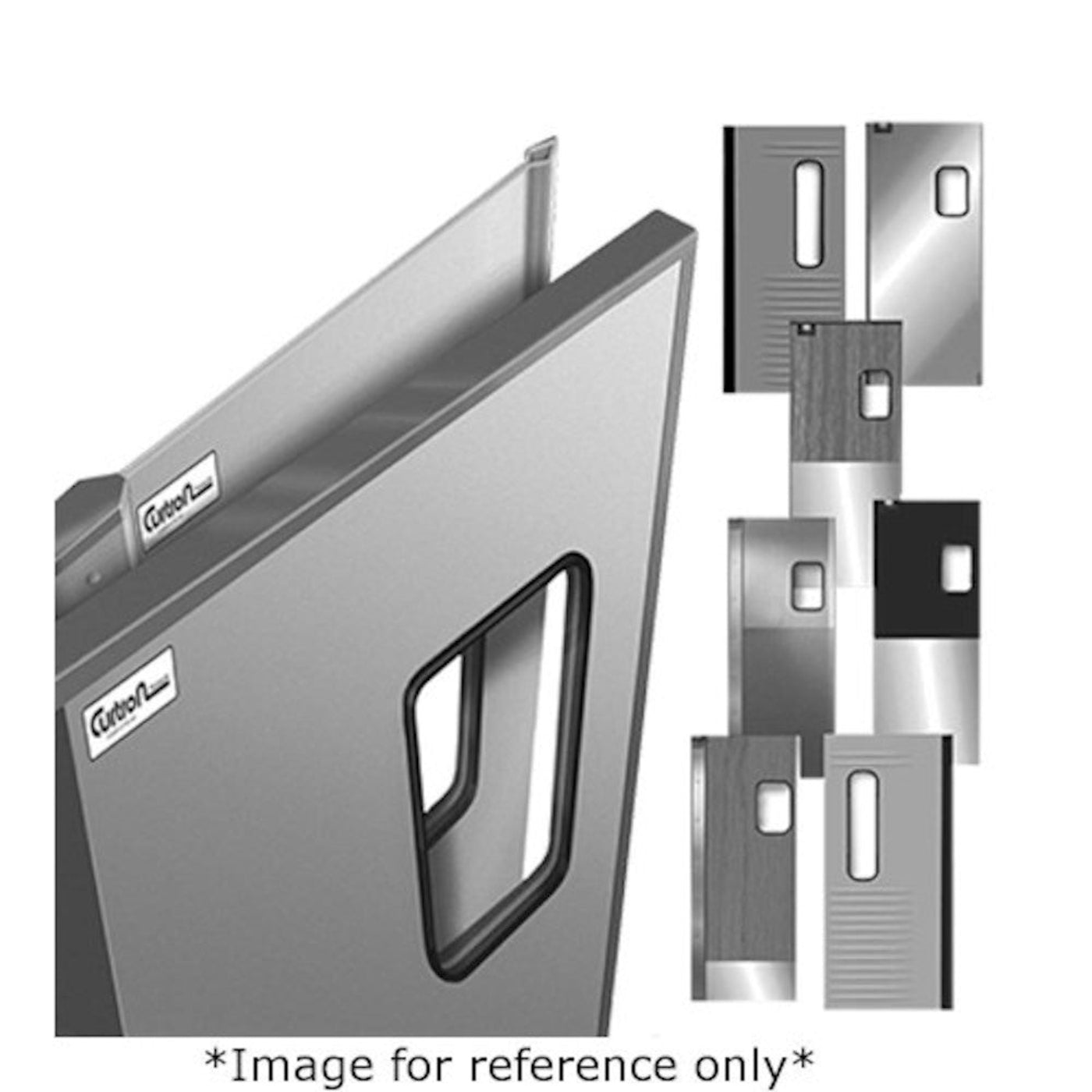

Curtron SPD-30-AL-GK-DBL-3696 36" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30ALGKDBL3696

Curtron SPD-30-AL-GK-DBL-3696 36" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30ALGKDBL3696

The Curtron SPD-30-AL-GK-DBL-3696 Service-Pro Swing Door creates a barrier between customers and kitchens, stock rooms, and warehouses to reduce noise. It is made of .032" tempered aluminum and has a satin anodized finish. The SPD-30-AL-GK-DBL-3696 comes with a full perimeter gasket and a 3/4" exterior grade solid wood core. It has two 18" x 96" door panels and two 9" x 14" windows. The Swing Door comes with a Save-T hinge assembly and bottom pin. It does not come with a kickplate or impact plate.

Features

• (2) 18" x 96" door panels
• .032" tempered aluminum with satin anodized finish exterior and full perimeter gasket
• 0.750" exterior grade solid wood core
• (2) 9" x 14" clear windows
• No kickplate / impact plate
• Save-T hinge assembly and bottom pin

Specifications

• Model: SPD-30-AL-GK-DBL-3696
• Dimensions: 96" H x 36" W
• Approximate Weight: 135 lbs.

What our Experts Think

• Efficient Narrow Opening (36″ × 96″) — Ideal for restricted openings while providing full-height clearance for carts and personnel.

• Durable Aluminum Finish — .032″ tempered aluminum panels with satin anodized finish offer corrosion resistance and easy cleaning.

• Robust Core & Sealing (“GK” Variant) — 0.750″ exterior-grade wood core with full-perimeter gasket for enhanced durability, sealing, and performance in high-traffic areas.

• Improved Visibility for Safety — Each panel includes a 9″ × 14″ clear window to reduce collisions and enhance sightlines in two-way traffic zones.

• Smooth Bi-Directional Flow — Double-swing panels enable efficient movement of staff and carts in both directions, supporting streamlined operations.

Q&A

Q: What are the dimensions of this door?
A: Fits a rough opening of 36″ wide × 96″ high.

Q: What does the model code “AL‑GK‑DBL‑3696” mean?
A:

• “AL” = Aluminum exterior finish

• “GK” = Full‑perimeter gasket

• “DBL” = Double swing (two panels)

• “3696” = 36″ width × 96″ height

Q: How many panels does it have and what are their approximate sizes?
A: Two swing panels, each approximately 18″ wide × 96″ high.

Q: What are the construction materials?
A:

• Exterior: Aluminum

• Core: 0.75″ solid composite wood

• Windows: Each panel has a 9″ × 14″ viewing window

• Gasket: Full‑perimeter gasket

Q: Where is this door typically used?
A: Ideal for commercial kitchens, service corridors, stock rooms, and other high-traffic areas requiring two-way swing access and durable aluminum construction.

Q: What should be verified before installation?
A: Confirm rough opening is 36″ × 96″, allow adequate swing clearance, and ensure the supporting frame is compatible with an aluminum double-swing door with gasket.

Q: Is the door fire-rated?
A: No, this model is not fire-rated.

Q: Does the door include a frame?
A: No, the frame is typically supplied separately.

Q: Are kickplates or impact plates included?
A: No, these are optional and not included by default.

Q: What maintenance is recommended?
A: Clean aluminum surfaces with mild cleaners, inspect hinges and bottom pins, check gasket condition, and keep viewing windows clear.

Maintenance Tips

• Clean regularly: Wipe aluminum panels and full-perimeter gasket with mild soap and warm water; dry thoroughly. Avoid harsh chemicals, solvents, or abrasives.

• Inspect hinges and hardware every 3–6 months: Remove hinge covers if possible, clean old grease, apply light grease to hinge cams and pivot pins, and tighten any loose fasteners.

• Check alignment and seals quarterly: Ensure both panels swing freely, close evenly, and gaskets maintain full contact to preserve sealing and energy efficiency.

• Keep swing path clear: Remove debris, carts, or equipment from the door’s path to prevent impact damage or misalignment.

• Use non-abrasive cleaning tools: Soft cloths help protect the aluminum finish and gasket integrity.
