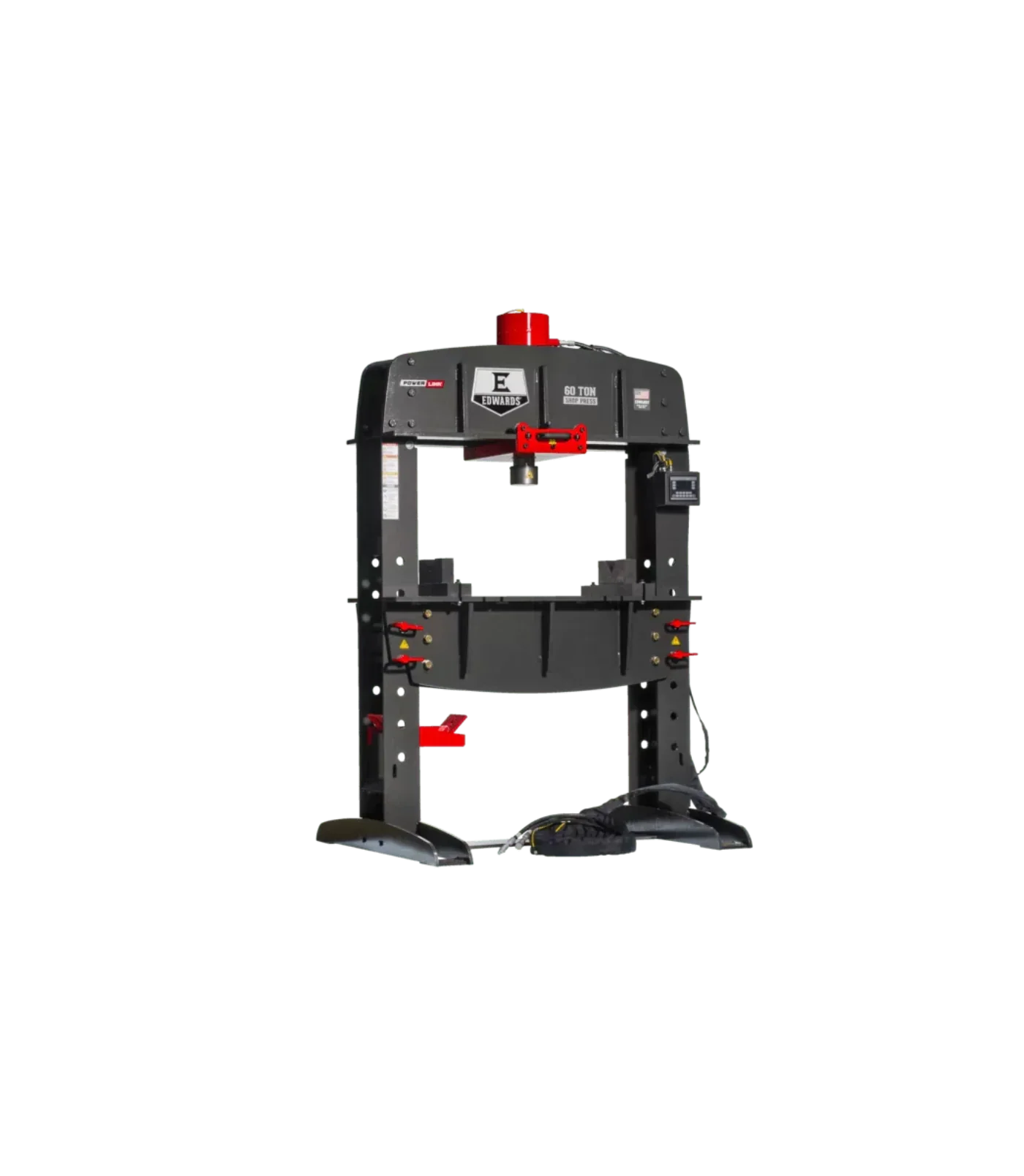

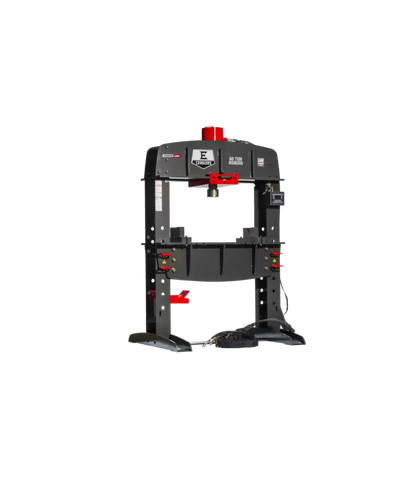

EDWARDS 60 Ton Shop Press w/ PLC & Portable Power Unit 3 Phase, 460V - ED9-HAT8080
This 60 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.
Features
- 20' quick-connect hoses for simple "plug & play" operation.
- Accepts a variety of standard and custom tooling.
- Electric foot pedal with integrated jog control.
- Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket.
- Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort.
- Open-sided design allows longer material to pass through the frame.
- Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency.
- Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included).
- Rolling cylinder provides maximum adaptability.
Specifications
| Stock Number |
ED9-HAT8080 |
| Gross Weight (Lbs) |
2300 |
| Minimum Ram Speed (In./Sec) |
.330 |
| Minimum Return Speed (In./Sec) |
.456 |
| Model Number |
HAT8080 |
| Net Weight (Lbs.) |
2300 |
| Product Dimensions (In.) |
48 x 54 x 86 |
| Prop 65 |
Cancer and Reproductive Harm |
| Rating (Tons) |
60 |
| Stroke (In.) |
12-1/4 |
| Weight (Lbs.) |
2300 |
| Work Table (In.) |
39-1/4 x 42 |
| Gross Weight |
2300.0 |
What our Experts Think
-
60âŻTon Press with PLC Control â delivers precise, repeatable press cycles with programmable control, ideal for consistent production and assembly tasks
-
Portable 3âPhase 460âŻV Power Unit Included â standalone hydraulic power offers flexibility without special infrastructure, powering the press and other hydraulic tools
-
IndustrialâStrength Construction â heavyâduty steel frame and robust hydraulics ensure longâterm durability under frequent use
-
Smooth, Controlled Operation â fine hydraulic regulation reduces part distortion and improves quality outcomes
-
Versatile Worktable & Accessory Compatibility â supports a wide range of dies, fixtures, and shop applications
-
OperatorâFriendly & Safe â intuitive PLC interface and builtâin safety controls enhance productivity and reduce errors
-
Ideal For: Fabrication shops, maintenance facilities, and professionals needing repeatable highâforce pressing with reliable 3âphase power
Q&A
Q6: Is it versatile for tooling?
A: Yes â it accepts a variety of standard and custom press tooling, increasing its usefulness across multiple metalworking tasks.
Q7: How does it improve workflow?
A: Programmable cycles, hydraulic assistance, and quickâconnect hydraulics streamline operations, boosting productivity and repeatability in highâvolume or precision work.
Q8: What environments benefit most?
A: Perfect for metal fabrication shops, industrial maintenance, automotive repair, and production facilities needing a powerful, automated press.
Q9: Is it ready to operate out of the box?
A: Yes â the included portable power unit means no separate PowerLink system is required for basic operation.
Q10: Whatâs the main advantage of this model?
A: Combining 60âŻton capacity, PLC automation, and a 460âŻV portable power unit makes it a versatile, highâefficiency press for demanding shop environments.
Maintenance Tips
-
Hydraulic Fluid & Lines: Regularly check hydraulic oil level, top up, and replace per schedule; inspect hoses, seals, and quickâconnect fittings for leaks or wear to maintain consistent 60âton force.
-
Lubrication: Grease ram guides, pivot points, and moving components to reduce friction and wear for smoother pressing operations.
-
PLC & Controls: Keep the programmable logic controller, foot pedal, and wiring clean, dry, and secure; verify function and safety interlocks for repeatable cycles.
-
Frame & Fasteners: Periodically inspect the press frame, work table, bolts, and hardware for tightness or stress cracks to maintain stability.
-
Clean Work Area: Remove metal shavings, dust, and debris from the press, power unit, and hoses to protect the hydraulic system and electrical components.
-
Electrical Safety: Ensure 460âŻV threeâphase connections and grounding are correct; check emergency stops and interlocks regularly.
-
Portable Power Unit Maintenance: Check motor, pump, and filters on the power unit for wear or blockages to maintain consistent performance.
-
Prevent Corrosion: Store in a dry, ventilated environment and apply light protective coatings to exposed steel when idle.
