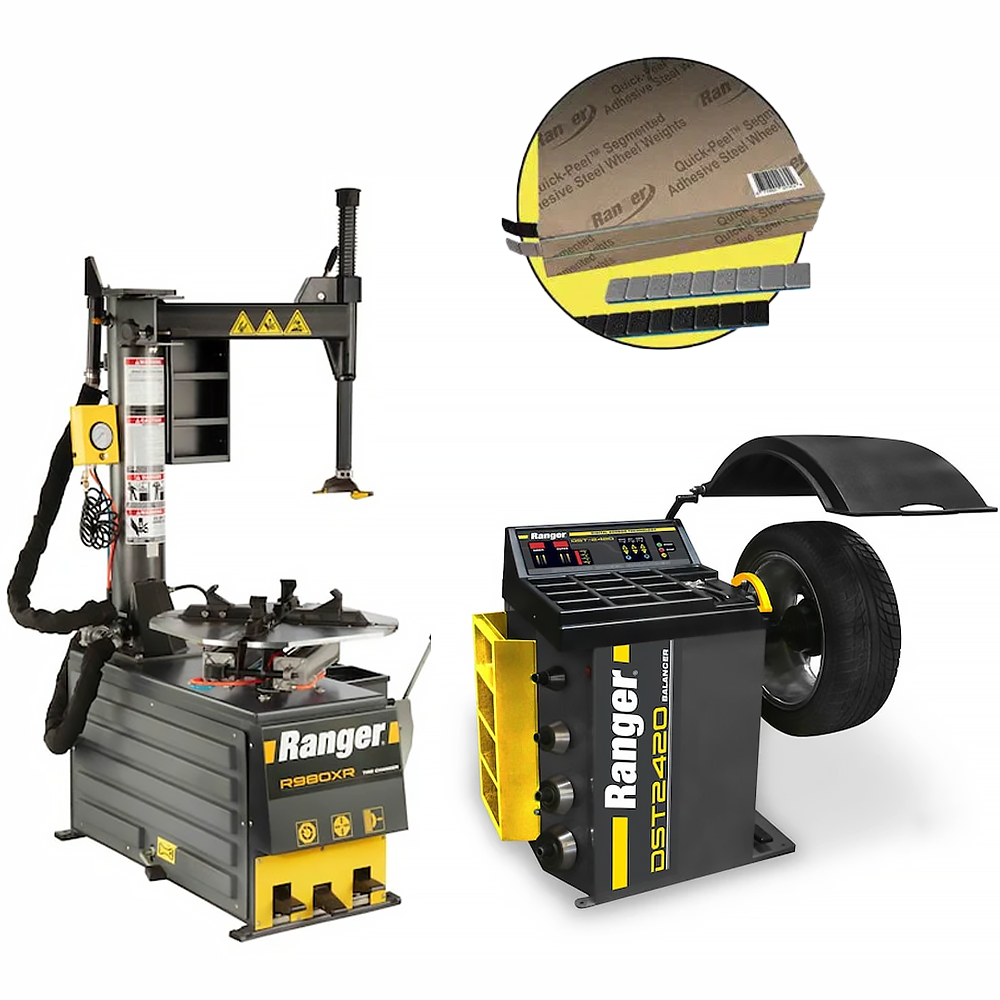

This comprehensive package provides a complete and efficient setup for your shop. It pairs the Ranger R980XR tire changer and DST2420 wheel balancer with a roll of adhesive tape weights, giving you a professional-grade setup that's ready to go. This combo is the ideal choice for shops looking to save space without compromising on quality or performance.
Included in this Package Deal
R980XR - QTY 1
- Tire Changer / Swing Arm / 30" Capacity
- The R980XR is a great space-saving alternative for shops that don't need a separate assist tower. It's built for general repair and handles a wide variety of tires, including those on racing vehicles and pickup trucks, making quick work of tire beads that aren't overly stiff.
DST2420 - QTY 1
- Wheel Balancer / 36 mm Shaft / 30" Maximum Wheel Diameter Capacity
- The highly accurate DST2420 dynamic wheel balancer delivers a precise balance within a hundredth of an ounce. This ensures you can provide your clients with a smooth, vibration-free ride every time, keeping your business running smoothly.
Tape Wheel Weights / Combo - QTY 1
- Adhesive Steel Wheel Weights / Combo / ROLLS (1400 pcs. - 0.25 oz. - 1/2' Wide - 22 lbs.)
- This combo includes a roll of adhesive steel wheel weights, offering an effective and environmentally friendly solution for balancing wheels. These weights help you achieve a precise balance while using as little material as possible.
Specifications

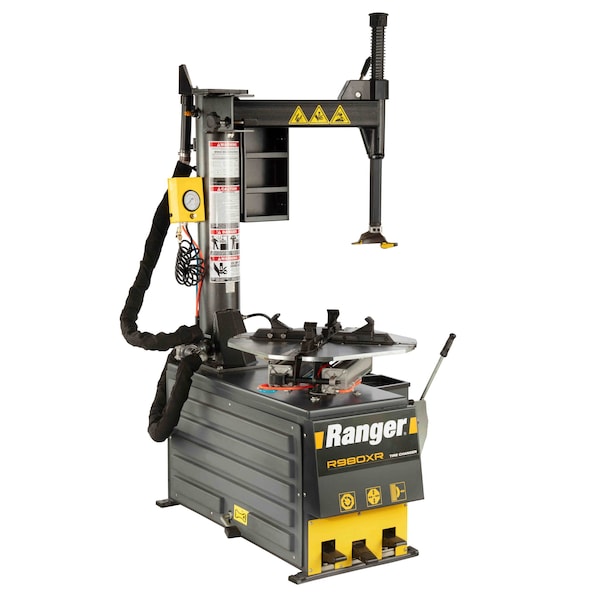

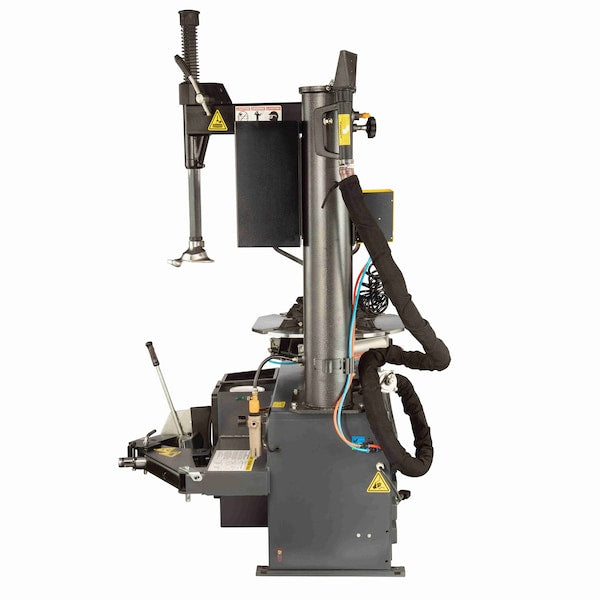

Ranger R980XR Tire Changer
-
Shipping Weight: 716 lbs. (324 kg)
-
Maximum Tire Diameter: 50" (1,270 mm)
-
Internal Rim Clamping Capacity: 10" – 30" (254 mm - 762 mm)
-
External Rim Clamping Capacity: 9" – 28" (229 mm - 711 mm)
-
Bead Breaker Tire Width Capacity (Demounting): 1.5” – 13” (38 mm – 330 mm)
-
Turntable Tire Width Capacity (Mounting): 4" – 18" (102 mm – 457 mm)
-
Style: Fixed Tower Design
-
Assist Type: Single-Tower Assist
-
Speed: Standard
-
Motor: 3 HP (220 VAC 50-60 HZ)
-
Air Requirement: 140-165 PSI (10-11 BAR)
-
Drive System Type: Electric / Air
-
Wheel Clamping Method: 4 Clamps - Internal / External
-
Table Clamping System: Dual Pneumatic Cylinders
-
Bead Breaking System: Pneumatic Blade / Dual
-
Tower Design: Rigid / Fixed
-
Power Assist Towers: N/A
-
Bead Seating System: Turbo Blast / Bead Seating
-
Shipping Dimensions: 43" x 51" x 44" (1,092 mm x 1,295 mm x 1,117 mm)

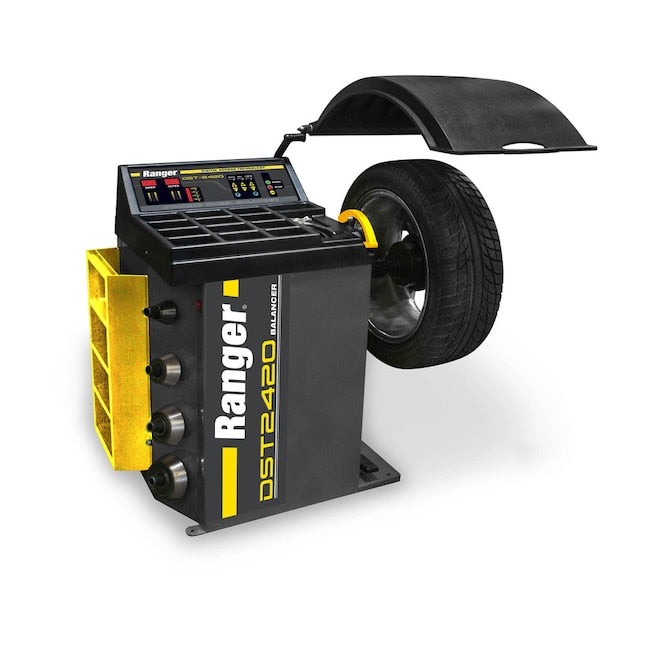

Ranger DST2420 Wheel Balancer
-
Shipping Weight: 398 lbs. (181 kg)
-
Max. Tire Diameter: 47" (1,194 mm)
-
Max. Tire Weight: 145 lbs. (65 kg)
-
Wheel Diameter Capacity: 10" - 30" (254 mm - 672 mm)
-
Wheel Width Capacity: 2" - 18" (51 mm - 457 mm)
-
Motor: 1.5 HP, 110V / 220V, 50 / 60 Hz, 1Ph
-
Cycle Time: 6 - 9 Seconds (avg.)
-
Balancing Increments: 0.25 or 0.01 oz
-
Balancing Speed: 180 RPM
-
Accuracy: +/- 1 gram (.035 oz)
-
Resolution: 0.01 ounce, 1.4°
-
Style: Auto & Light Truck
-
Data Entry: Manual
-
Drive System: Belt Drive
-
Wheel Braking: Automatic / Electronic
-
Balancing Modes: Dynamic / Static / 3-Alloy
-
Cones Included: 3 Standard / 1 Truck
